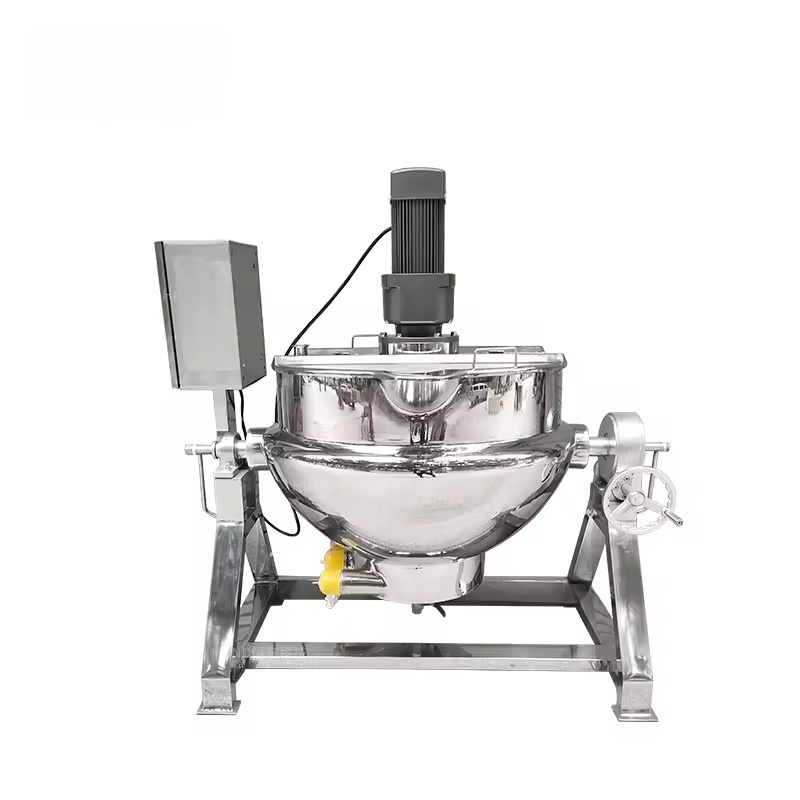

Steam Jacketed Kettle Tilting Vacuum Double Jacket Kettle with Agitator Mixer / Jacketed Cooking Kettle

No price
Cumulative sales0Cumulative evaluation0
Quantity
- +
Collect
  • Description
  • All the evaluation

What is a sandwich pot

A steam jacketed pot (also known as a steam heated jacketed pot) is a closed cooking equipment that is indirectly heated by steam and widely used in industries such as food. The products suitable for processing mainly depend on temperature control




Application:

The stainless steel jacket kettle can be applied to a wide variety of foods processing, such as candy, fruit jams , syrup , sugar ,dairy, liquor, cake, candied fruit, drink, canned goods, sauced meat etc. It also can be used in making soup, cooking stir-fry, stewing meat,cooking porridge and so on, and it is a wonderful equipment to improve quality, reduce time and improve working conditions during foods processing.



Feature:

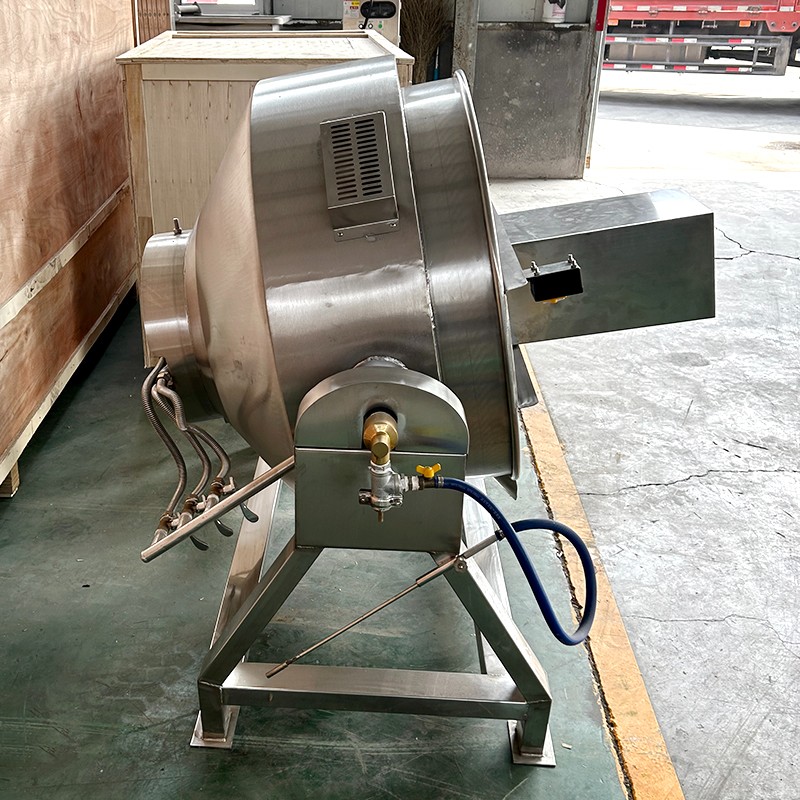

Tilting jacketed kettle is composed of kettle,bracket,worm wheel and worm etc. The kettle can revolve within 180°, the equipment is used for open concentration,mainly for decocting and concentration of liquid in industries of food industry,chemical industry and light industry etc.Contact area of the equipment with aterials is made of stainless steel SUS304,which has perfect corrosion-proof performance,and is highly endurable according to GMP requirements. Blender also can be added according to customer requirements



Parameter


Model
HD-50
HD-100
HD-200
HD-300
HD-400
HD500
Equipment volume
 ( L)
50
100
200
300
400
500
Working pressure in jacket
 (Mpa)
<0.2
<0.2
<0.2
<0.2
<0.2
<0.2
Evaporating quantity
(kg/h)
30
40
65
75
100
150
Heating area
 (㎡)
0.4
0.45
1.0
1.15
1.44
1.9
Energy consumption
 (kg/h)
33
44
72
90
110
165
Weight of equipment
 (kg)
170
190
230
320
360
485
Outline dimension
Length
720
800
1400
1450
1500
1600
Width
600
650
700
800
850
900
Height
830
950
1100
1110
1140
1150
